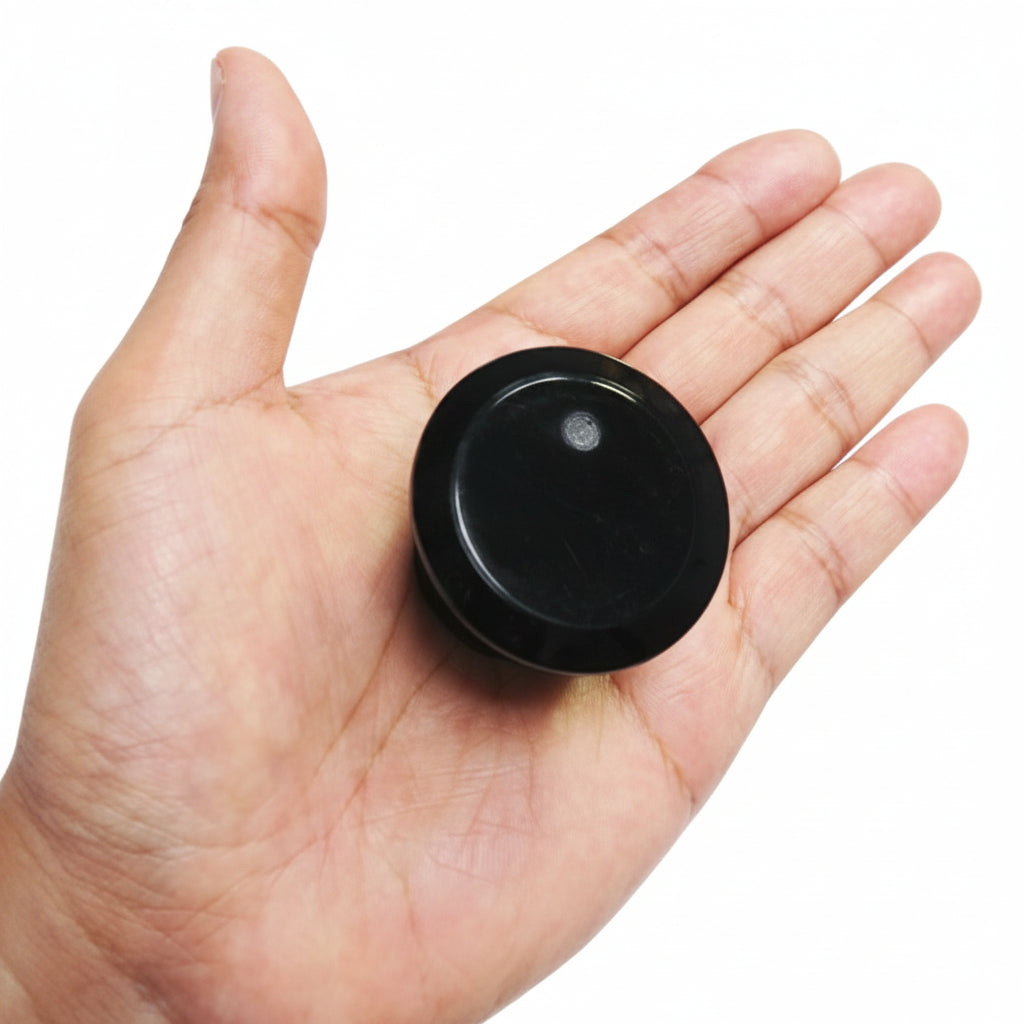

TOUCH-LESS MINI SWITCH

Premium IR Touchless Sensor Switch designed for modern automation, hygienic contactless control, and smart access applications. This advanced sensor features a built-in microcontroller for precise infrared signal decoding, ensuring stable operation with strong resistance to external interference. It offers an adjustable proximity detection range of 3–15 cm and customizable timing control from 0.5 to 20 seconds, including latched ON/OFF output modes for flexible system integration. Equipped with NC and NO relay outputs, it supports a wide range of electrical control applications. The bi-color LED indicator provides clear status feedback, while its compact and durable design ensures long-term reliable performance in demanding environments.

Key Features

Product Type: IR Touchless Sensor Switch
Power Supply: DC 12V 1A
Detection Range: 3–15 cm
Output Modes: NC / NO Relay Output
Relay Rating: 1A @ 30VDC
Operating Current: 37mA ±5%
Standby Current: 25mA ±5%
Operating Temperature: -20°C to 75°C
Timing Control: 0.5–20 seconds or Latched ON/OFF
Material: Polycarbonate (Fire & UV Resistant)
Protection Rating: IP65 Waterproof
Performance: High Sensitivity Detection, Stable Switching, Low Power Consumption
Indicators: Bi-Color LED (Red Power / Blue Proximity)
Lifetime: Up to 100,000 cycles / 50,000,000 dry contact cycles

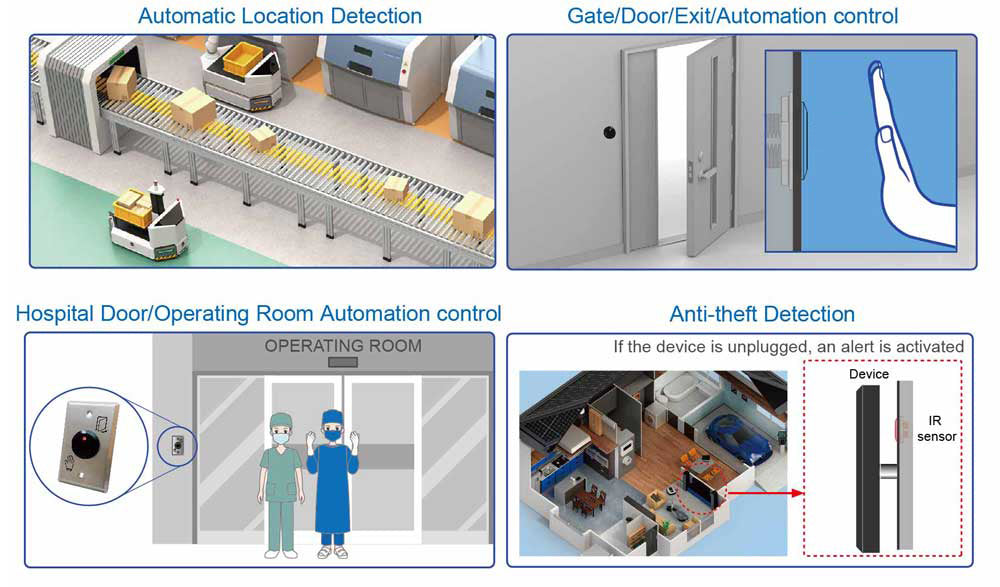

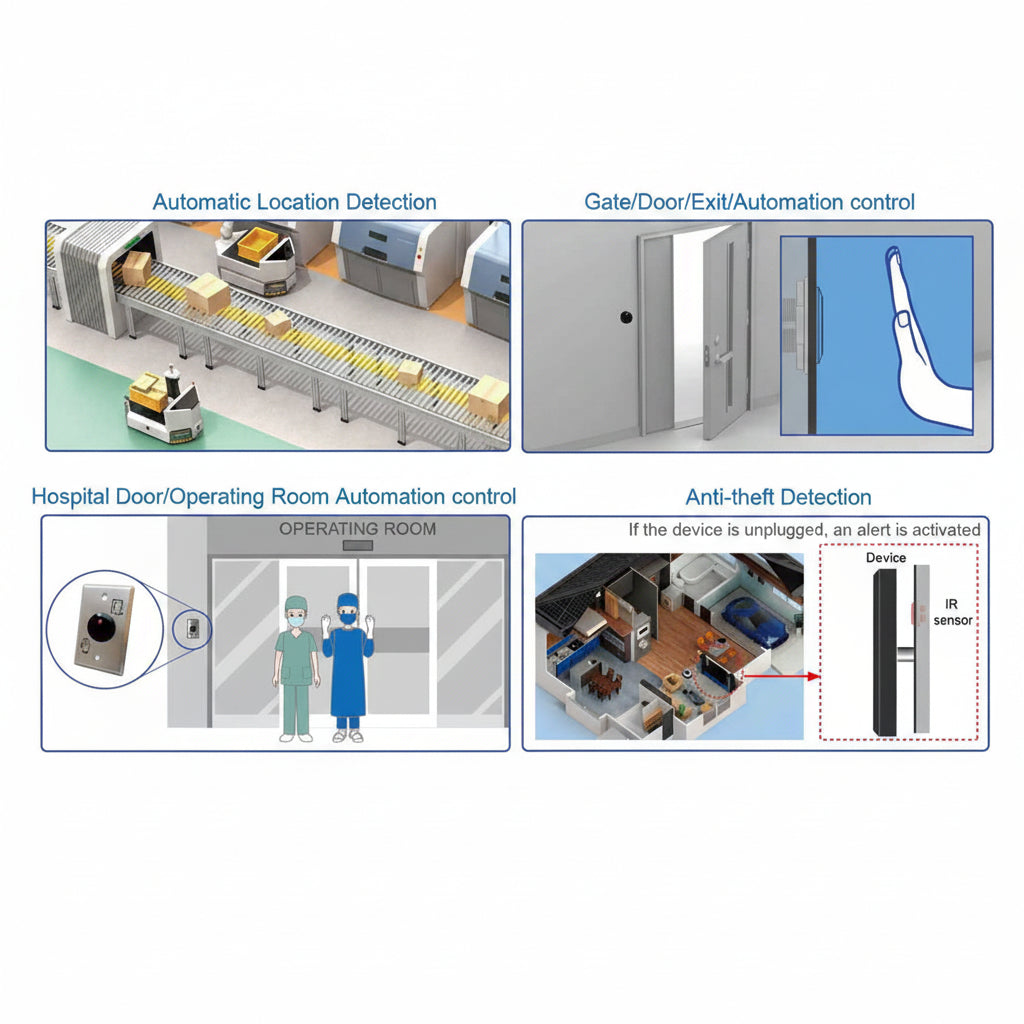

Application: Smart Doors, Bathrooms, Hotels, Hospitals, Offices, Kitchens, and Automation Systems

Note: Designed for reliable touchless switching with extended detection range, low voltage operation, and durable IP65 protection for professional automation use.
