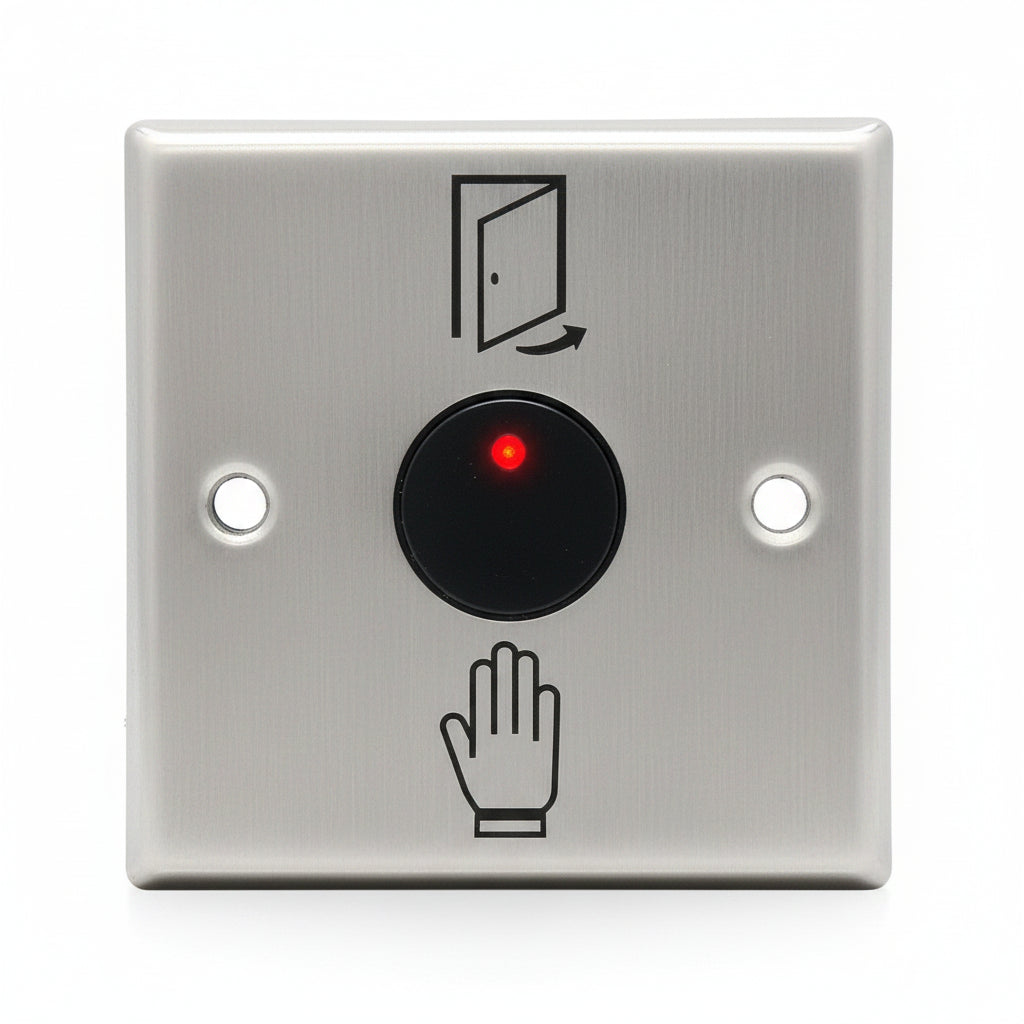

TOUCH-LESS EXIT SWITCH

Premium IR Touchless Sensor Switch designed for smart automation, access control, and hygienic contactless operation in modern residential and commercial environments. This advanced sensor utilizes a built-in microcontroller for precise infrared signal decoding, ensuring stable performance with minimal interference. It features an adjustable proximity detection range of 3–10 cm and customizable output timing from 0.5 to 20 seconds, with support for latched ON/OFF modes for flexible control. Equipped with NC and NO relay outputs, it offers seamless integration into various electrical and automation systems. The bi-color LED status indicator provides clear visual feedback for power and detection status. Built with stainless steel and UV-resistant materials, it ensures durability, reliability, and long service life.

Key Features

Product Type: IR Touchless Sensor Switch
Power Supply: DC 24V ±10%
Detection Range: 3–10 cm
Output Modes: NC / NO Relay Output
Relay Rating: 1A @ 30VDC
Operating Current: 60mA ±5%
Standby Current: 50mA ±5%
Operating Temperature: -20°C to 75°C
Timing Control: 0.5–20 seconds or Latched ON/OFF
Material: Stainless Steel Faceplate + Polycarbonate IR Sensor
Waterproof Rating: IP65 (IR Sensor)
Dimensions: 86 × 86 mm (Plate 5 mm / Total Depth 34 mm)
Hole Distance: 60 mm
Weight: 70 g ±5%
Lifetime: Up to 100,000 cycles / 50,000,000 dry contact cycles
Indicators: Bi-Color LED (Red Power / Blue Proximity)
Performance: High Sensitivity Detection, Stable Switching, Long Life Operation

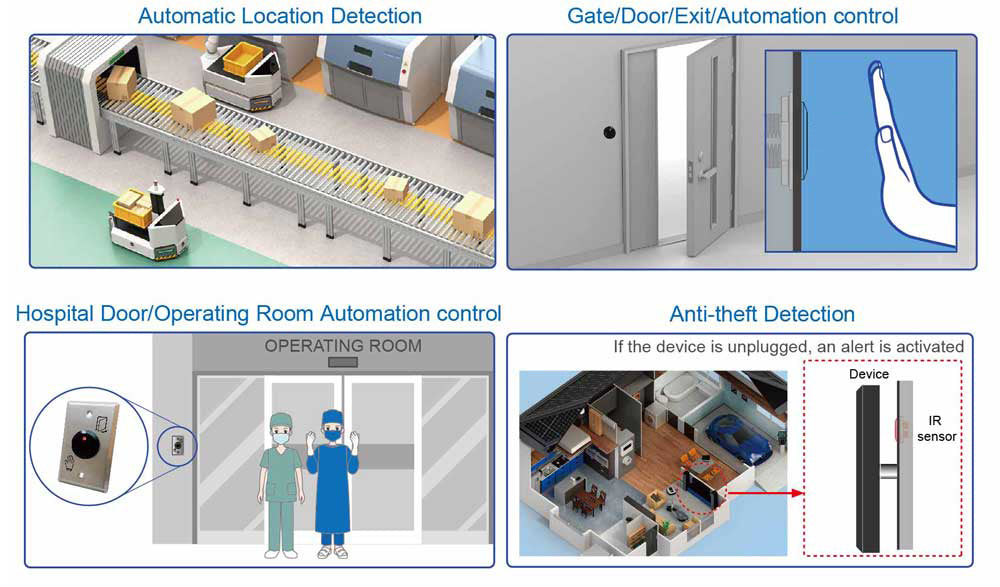

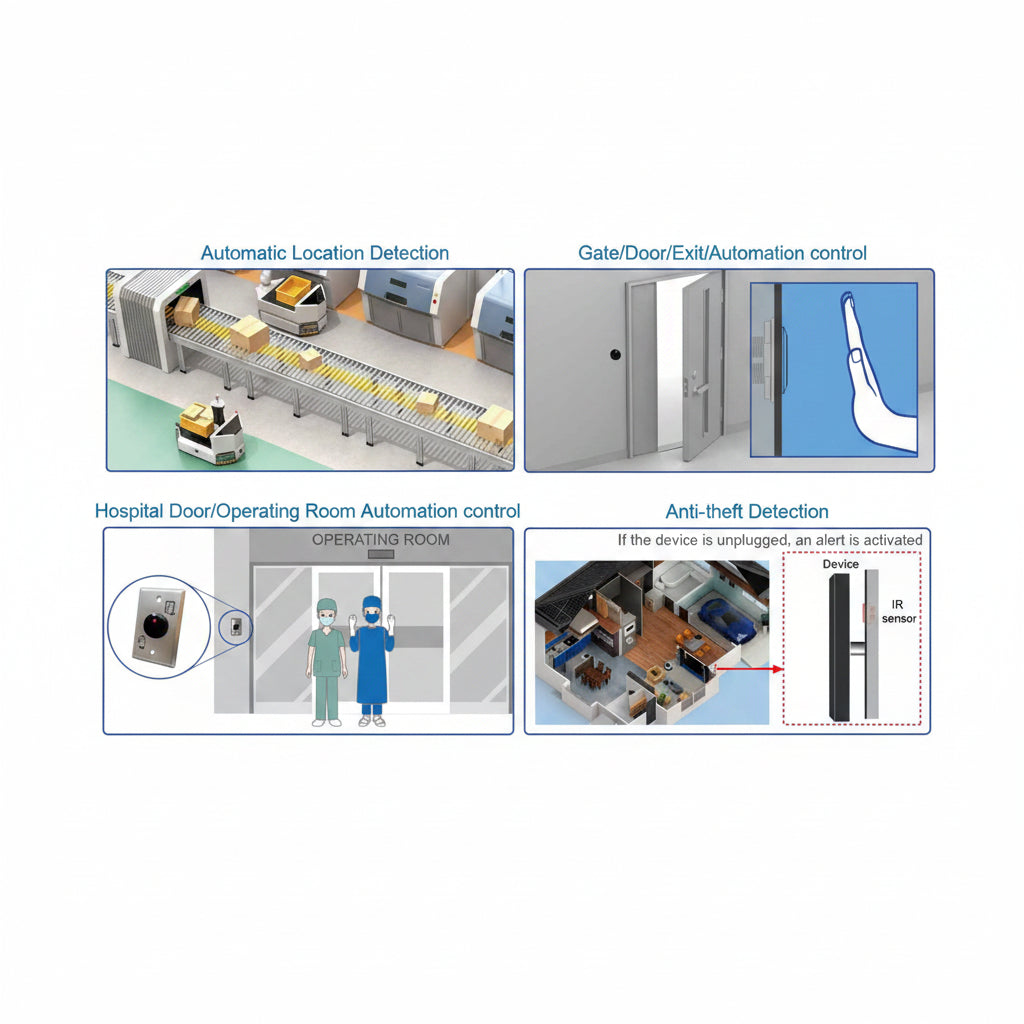

Application: Smart Doors, Washrooms, Access Control, Hotels, Offices, Hospitals, and Automation Systems

Note: Designed for reliable contactless switching with adjustable sensing range, industrial-grade durability, and high-cycle lifespan for professional automation use.
