SMALL CEILING SPEAKER

Premium 3” Ceiling Speaker designed for professional background music and public address systems in commercial and residential environments. It features a built-in 70V/100V transformer system, ensuring efficient long-distance signal transmission with minimal line loss and easy multi-speaker parallel connection. Its wide frequency response of 120Hz–20kHz delivers clear vocals and balanced audio performance for paging and background music applications. Equipped with a durable ABS baffle and aluminum grille finished in RAL9016 white, it offers a clean and modern ceiling integration. The spring-clip mounting system ensures fast, secure, and hassle-free installation, making it ideal for large-scale audio distribution systems.

Key Features

Product Type: Ceiling Speaker
Speaker Driver: 3” Full-Range Driver
Power Taps: 1.5W / 3W / 6W
Transformer System: 70V / 100V Line Support
Impedance: Black: Com, Red: 1.7KΩ, White: 3.3KΩ
Frequency Response: 120Hz – 20kHz
Sensitivity (SPL 1W/1m): 88dB
Max SPL: 96dB

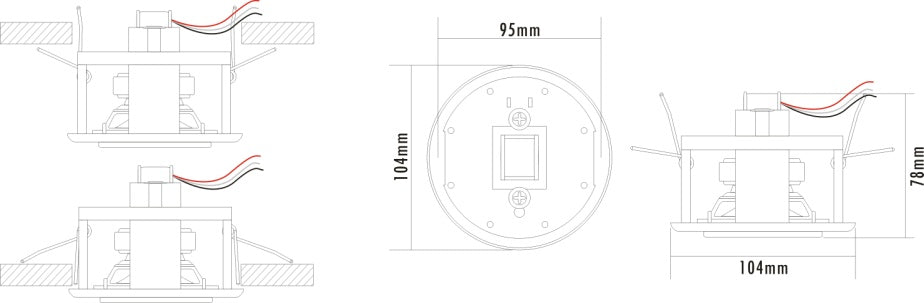

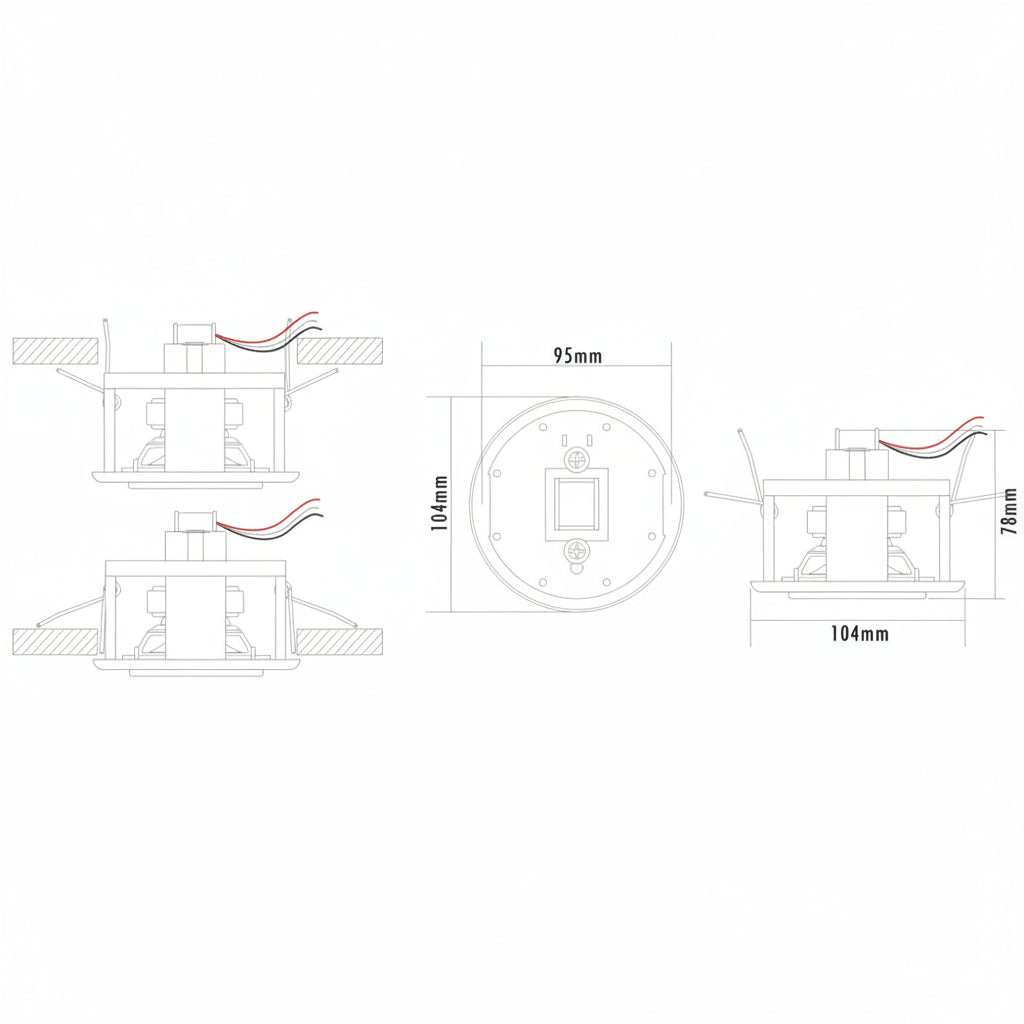

Dimensions: 104 × 78 mm
Cut-Out Size: 95 mm
Material: ABS Baffle + Aluminum Grille
Finish: White (RAL9016)
Mounting Type: Spring Clip Installation
Weight: 0.5 kg
Performance: Clear Sound Output, Wide Frequency Response, Efficient Multi-Speaker Support
Application: Hotels, Offices, Schools, Hospitals, Retail Stores, Factories, and Public Address Systems

Note: Designed for reliable distributed audio systems with 70V/100V compatibility, easy installation, and clear background sound performance.
