RECESSED MOTION SENSOR

FUNCTION:

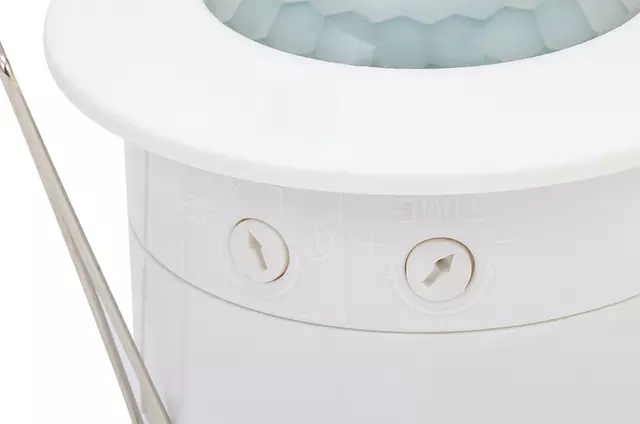

Can identify day and night: The consumer can adjust working state in different ambient light. It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). Time-Delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment.

Specification:

Power supply voltage: 220 ~ 240V/AC
Power frequency: 50 ~ 60Hz
Ambient Light: <3LUX to daylight illumination
Load power: 300w
Time Delay: 3 seconds - 7 minutes
Detection angle: 360 degree
Operating Temperature: -20 ~ 50 degree
Relative humidity: less than 93% RH

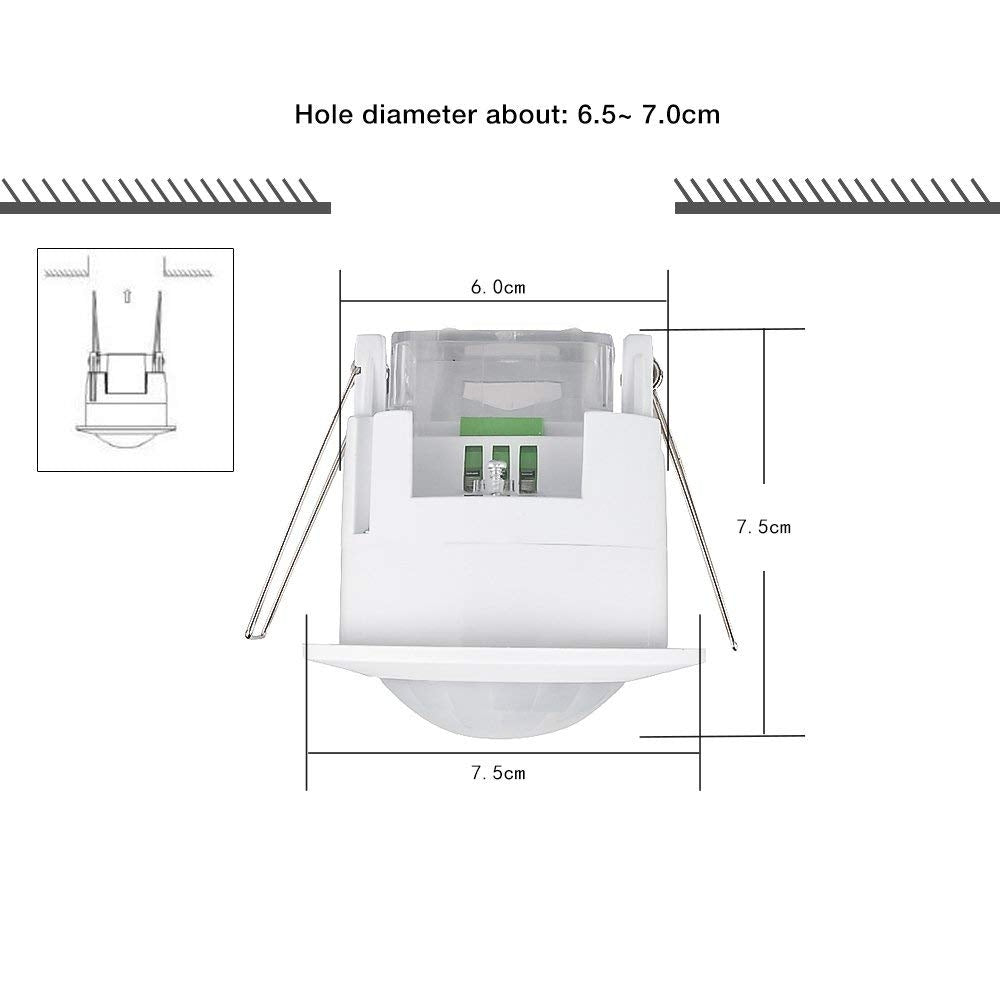

Installation height: 1.5m to 3.5m
Power consumption: 0.45W
Detection Motion Speed: 0.6 to 1.5 m/s
