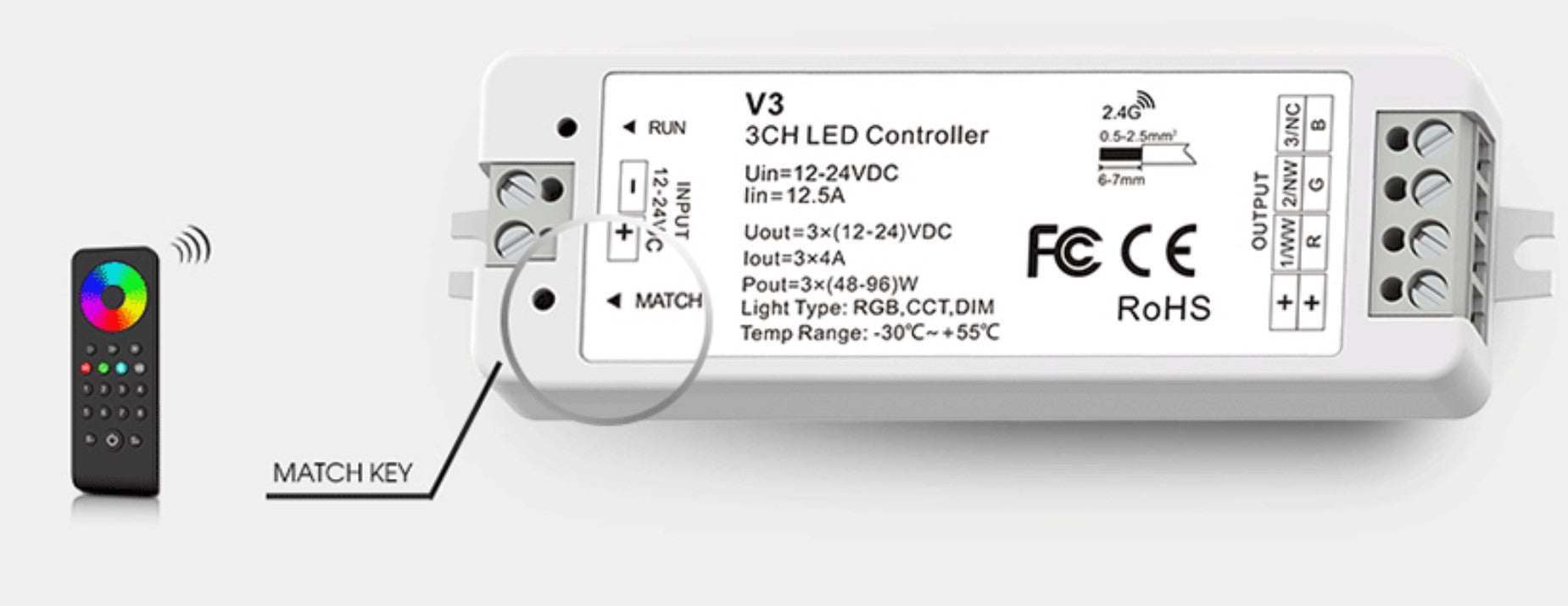

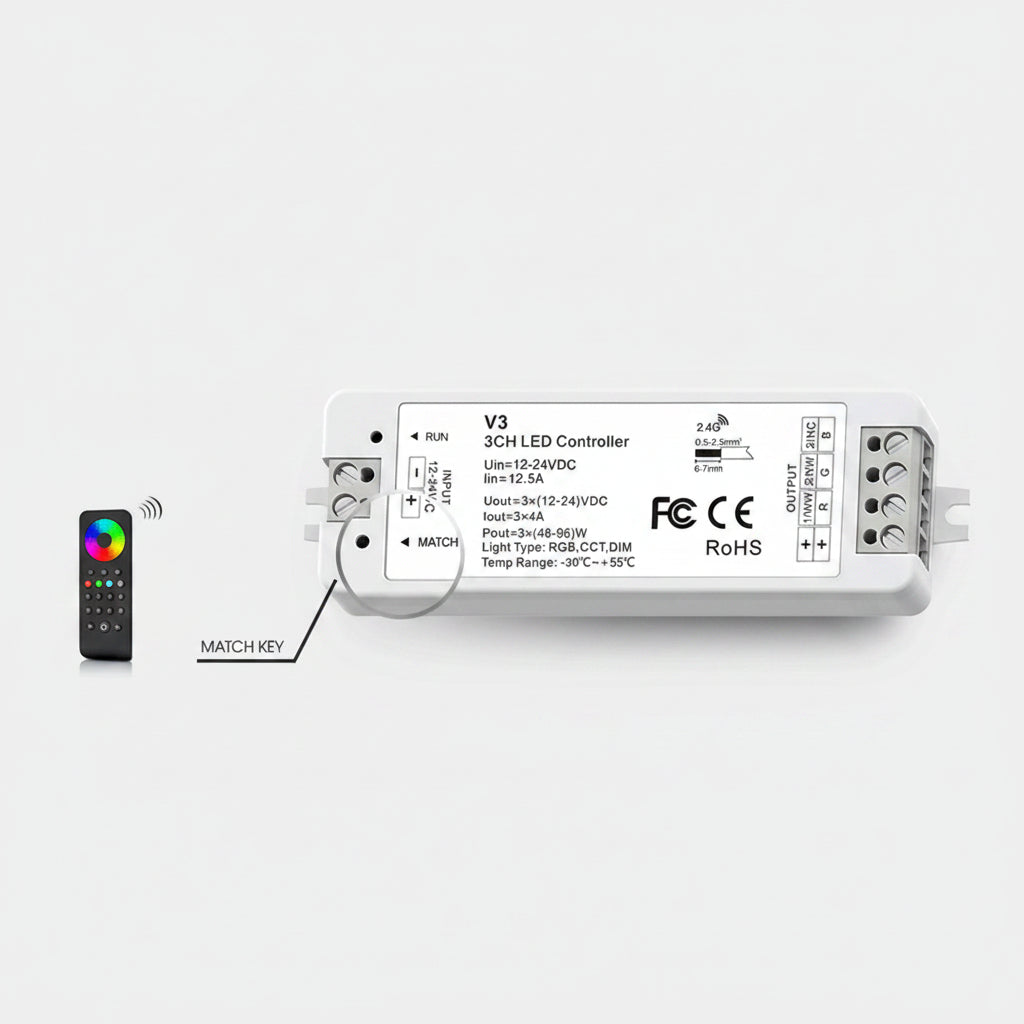

3 Channel LED RF Controller

Premium 3-channel LED RF controller designed for advanced smart lighting applications including RGB, CCT, and single-color LED systems. Engineered for high-precision PWM constant voltage output, this intelligent controller delivers smooth and flicker-free dimming performance with ultra-fine 4096 grey levels per channel. It is fully compatible with 2.4GHz RF remotes supporting single-color, dual-color, RGB, and RGBW configurations, offering flexible control across modern lighting installations. With built-in dynamic lighting modes and automatic signal transmission between controllers, it enables synchronized multi-unit operation for large-scale lighting environments such as architectural façades, commercial displays, and decorative lighting systems.

Key Features

Product Type: 3-Channel LED RF Controller
Control System: RGB / CCT / Dimming multi-mode RF controller
Input Voltage: 12–36V DC
Output Type: PWM constant voltage
Output Channels: 3 channels (RGB/CCT control support)
Output Current: 6A per channel
Output Power: 90–648W total load capacity

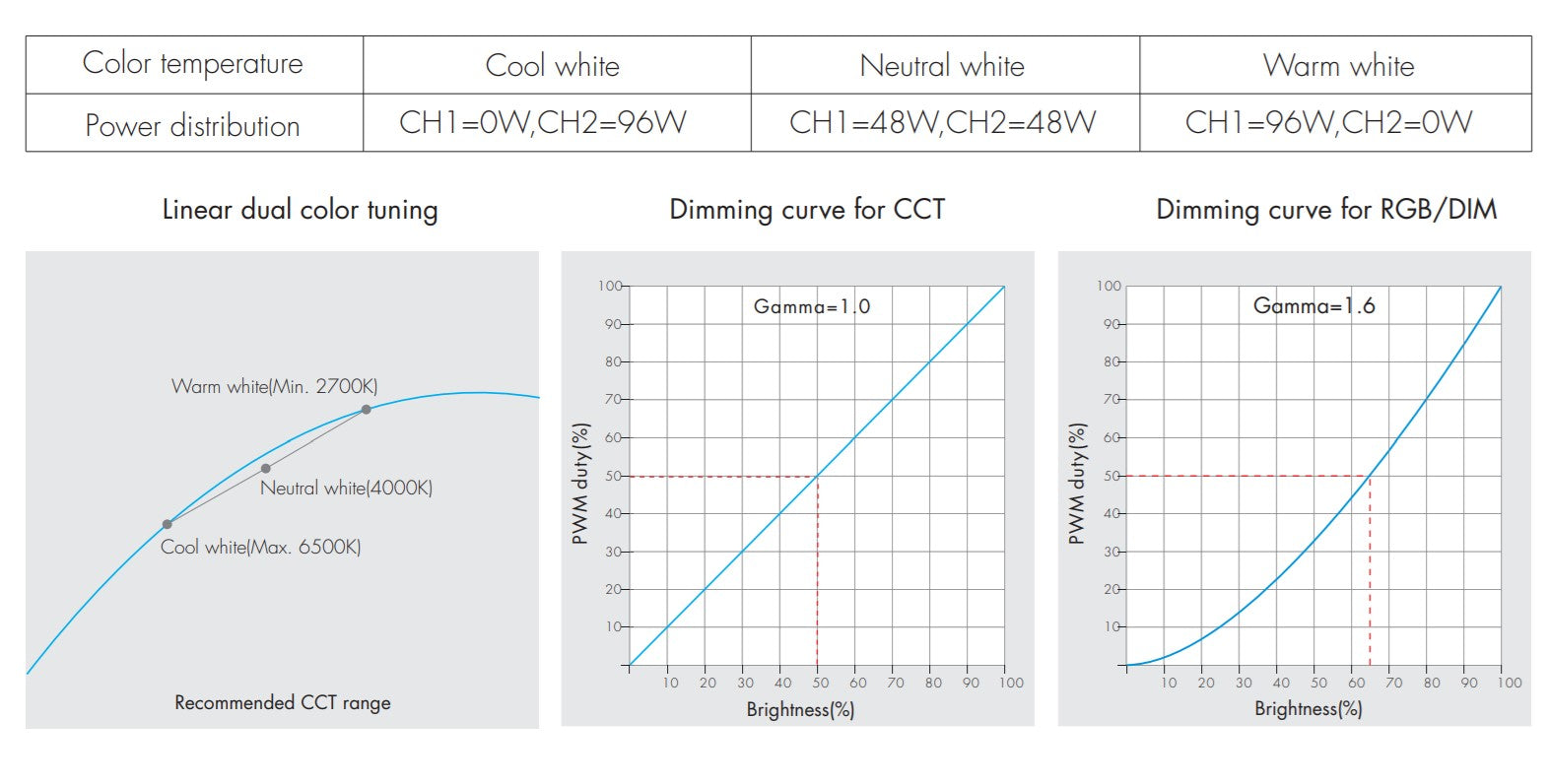

Dimming Range: 0–100% smooth brightness adjustment
Grey Levels: 4096 levels per channel ultra-precise control
Remote Control Distance: 20–40 meters RF range
Remote Compatibility: Supports up to 10 RF remotes
Dynamic Modes: 10 built-in RGB dynamic effects (fade, jump, gradual change)
Synchronization Function: Auto signal transmission for multi-controller synchronization (up to 30m)
Working Temperature: -30°C to +55°C industrial-grade operation
Dimensions: 175 × 45 × 27 mm compact design
Net Weight: 110 g lightweight construction

Note: Designed for professional multi-channel LED control with high-resolution dimming, synchronized operation, and flexible RGB/CCT lighting management for smart lighting systems.
