Architectural LED In-Ground Uplight - 1W

Premium architectural in-ground uplight designed for precision landscape illumination and refined outdoor accent lighting. Engineered with a USA CREE 1W LED chip delivering 100 lumens with CRI90 accuracy, it ensures natural and high-quality color rendering for detailed architectural enhancement. The 3000K warm white CCT creates a soft yet elegant lighting atmosphere, ideal for subtle highlighting effects. Featuring a focused 10° ultra-narrow beam with up to a 3-meter lighting effect, this fixture is perfect for pathways, small trees, façades, and decorative landscape elements. Built with a passivated 6063 aluminum body and premium 316L stainless steel front cover, it delivers exceptional corrosion resistance and long-term durability. Its IP67 waterproof construction and constant current driver ensure stable, efficient performance in all outdoor conditions.

Key Features

Product Type: Architectural LED In-Ground Uplight
LED Type: USA CREE 1W High-Efficiency Chip (100 lm, CRI90)
Color Temperature: 3000K Warm White
Beam Angle: 10° Ultra-Narrow Beam (Up to 3m Lighting Effect)

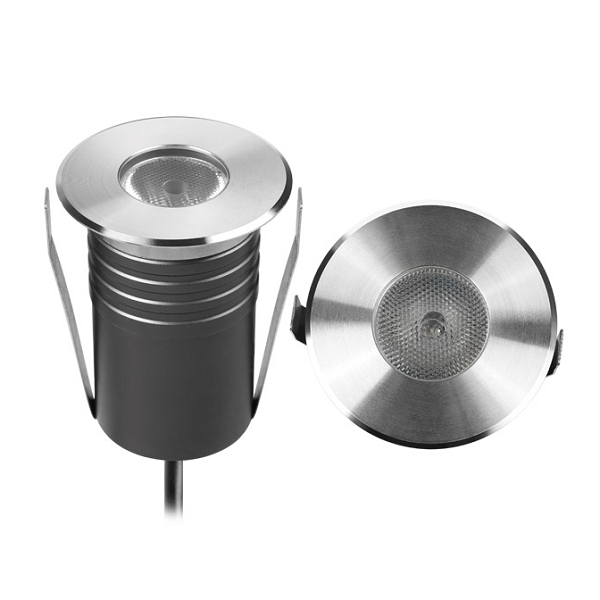

Housing Material: Passivated 6063 Aluminum

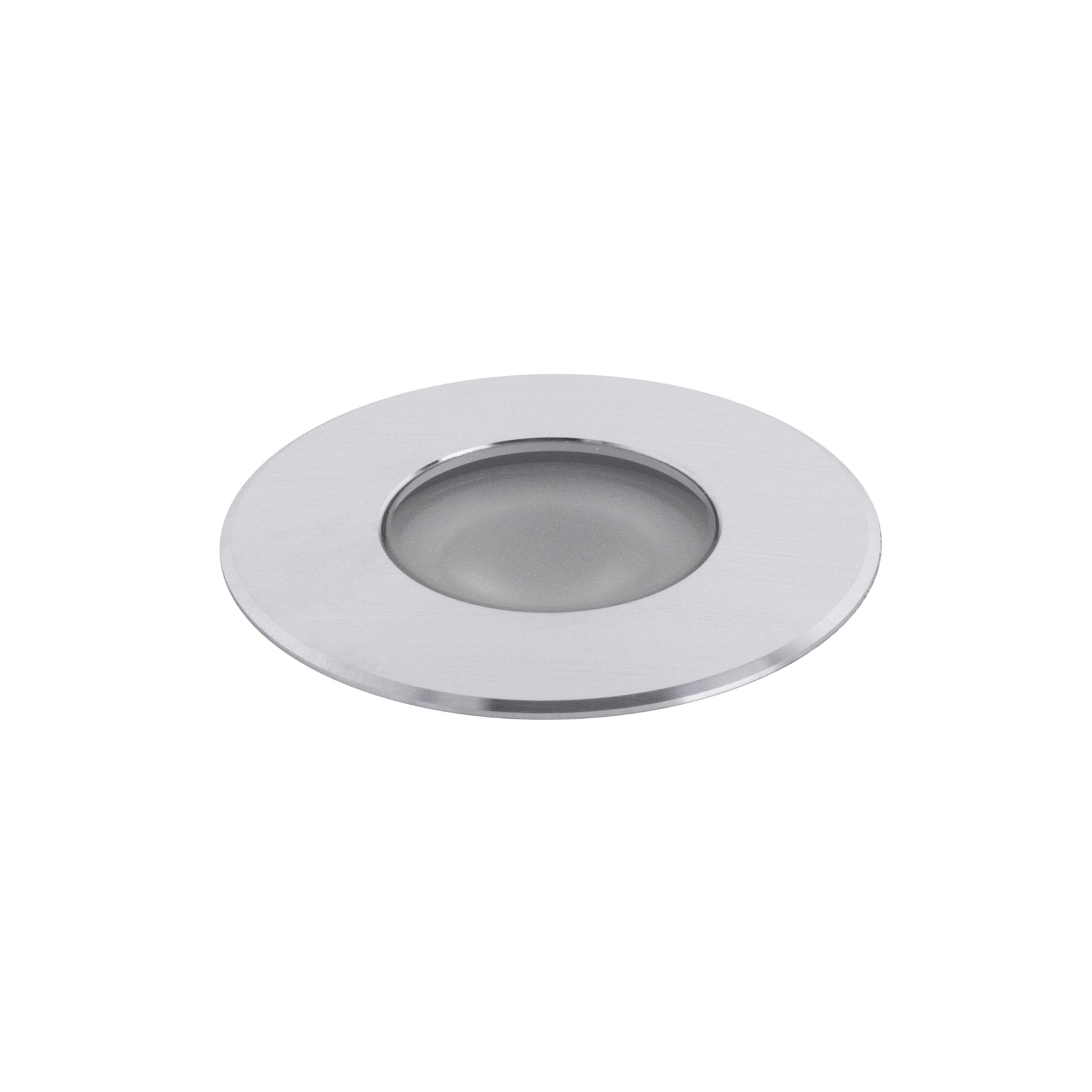

Front Cover: Premium 316L Stainless Steel
Glass Type: 6mm Tempered Step Glass

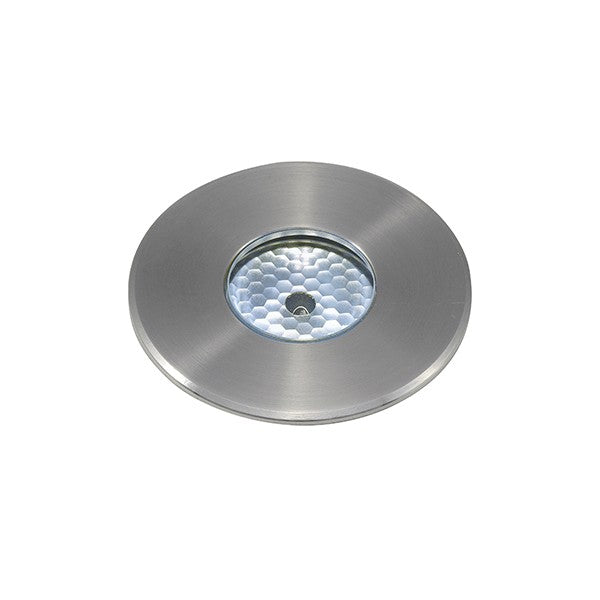

Anti-Glare System: Honeycomb Lens Technology
Load Capacity: Up to 610 kg
Input Voltage: 240V AC
Driver Type: Constant Current Output
Power Cable: H05RN-F Neoprene Rubber Cable, 0.75mm² × 1m
Cable Gland: PG7 Copper with Nickel Coating
Sealing System: PMQ Silicone O-Ring Gasket
Mounting Sleeve: Durable Plastic Sleeve
Operating Temperature: -20°C to +60°C
Waterproof Rating: IP67

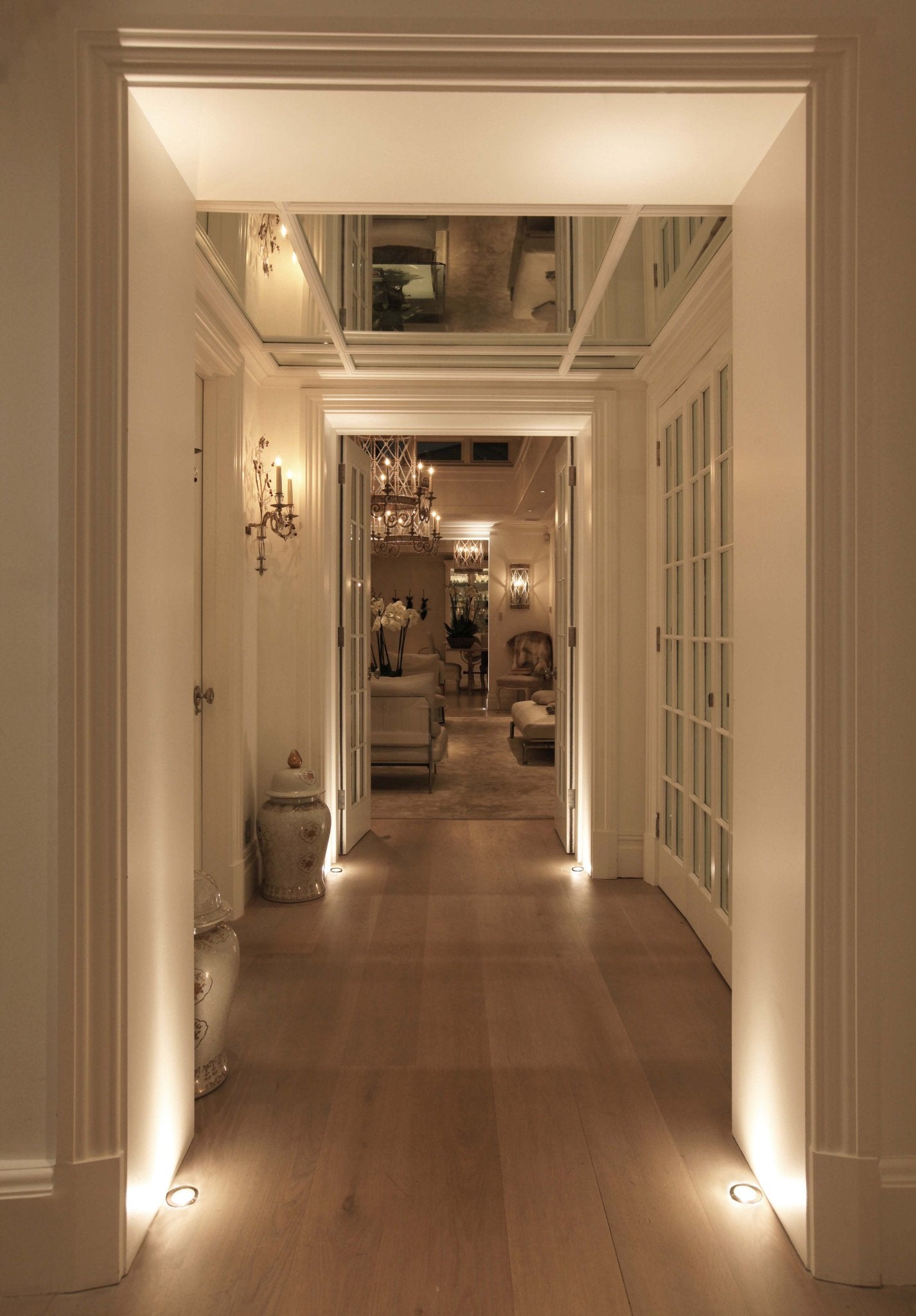

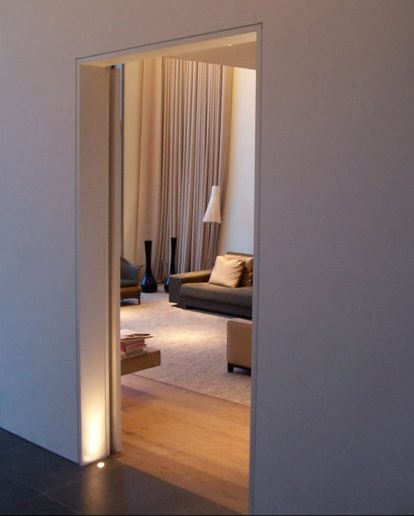

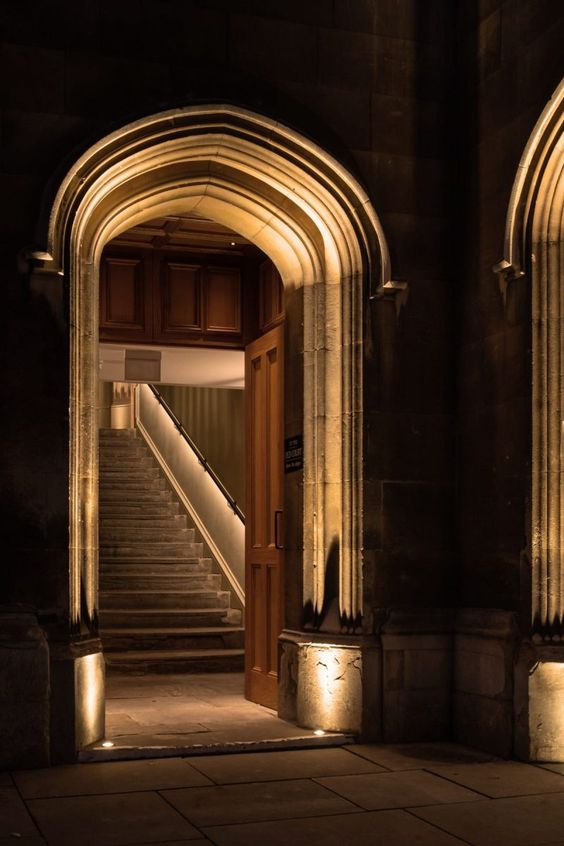

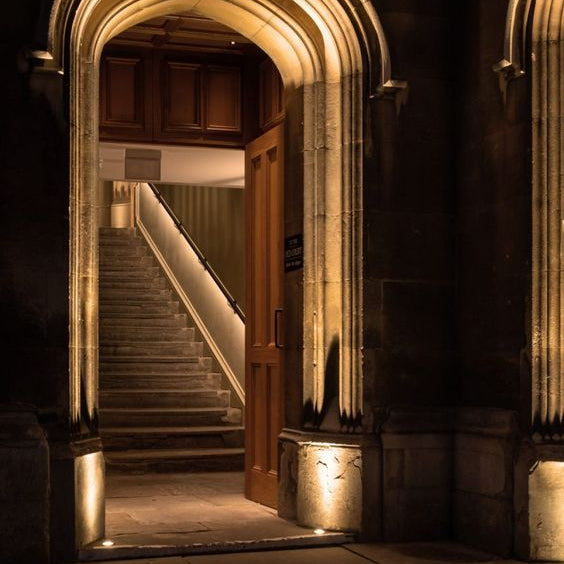

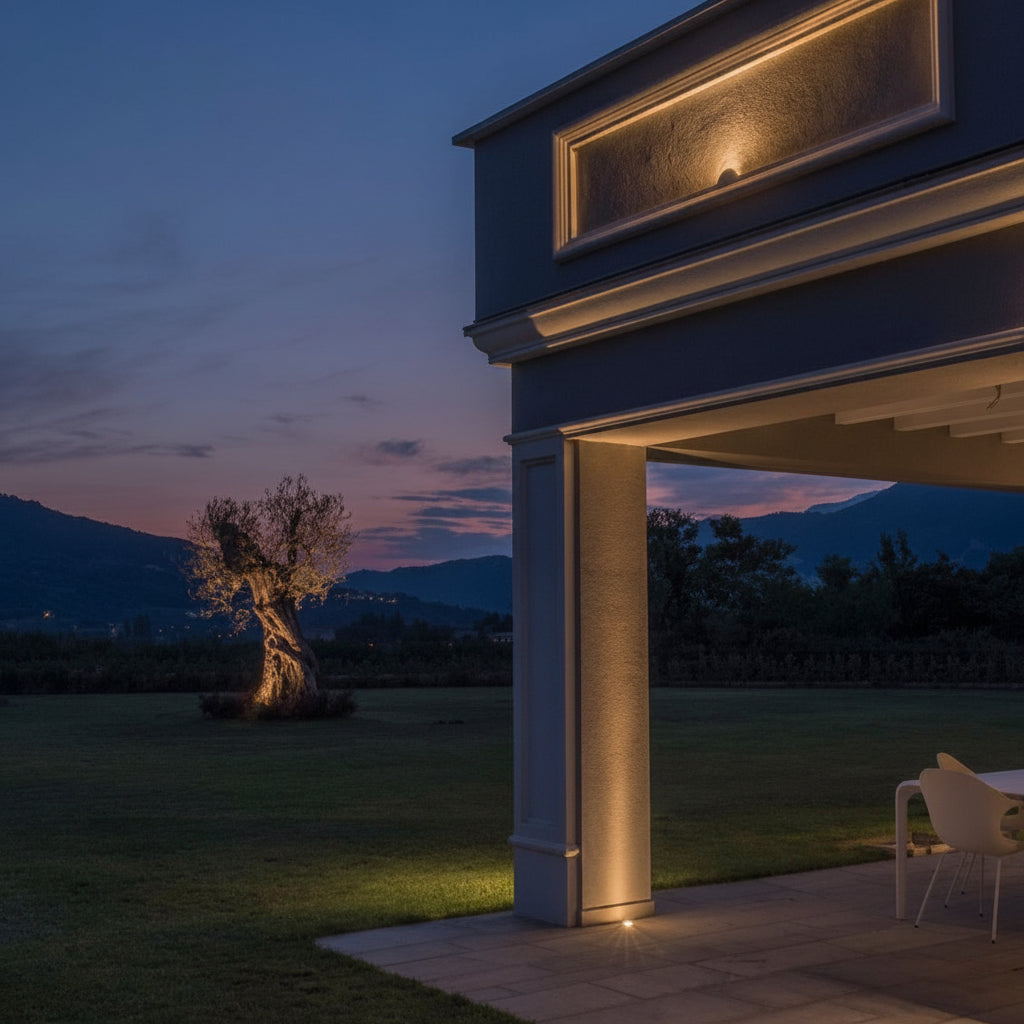

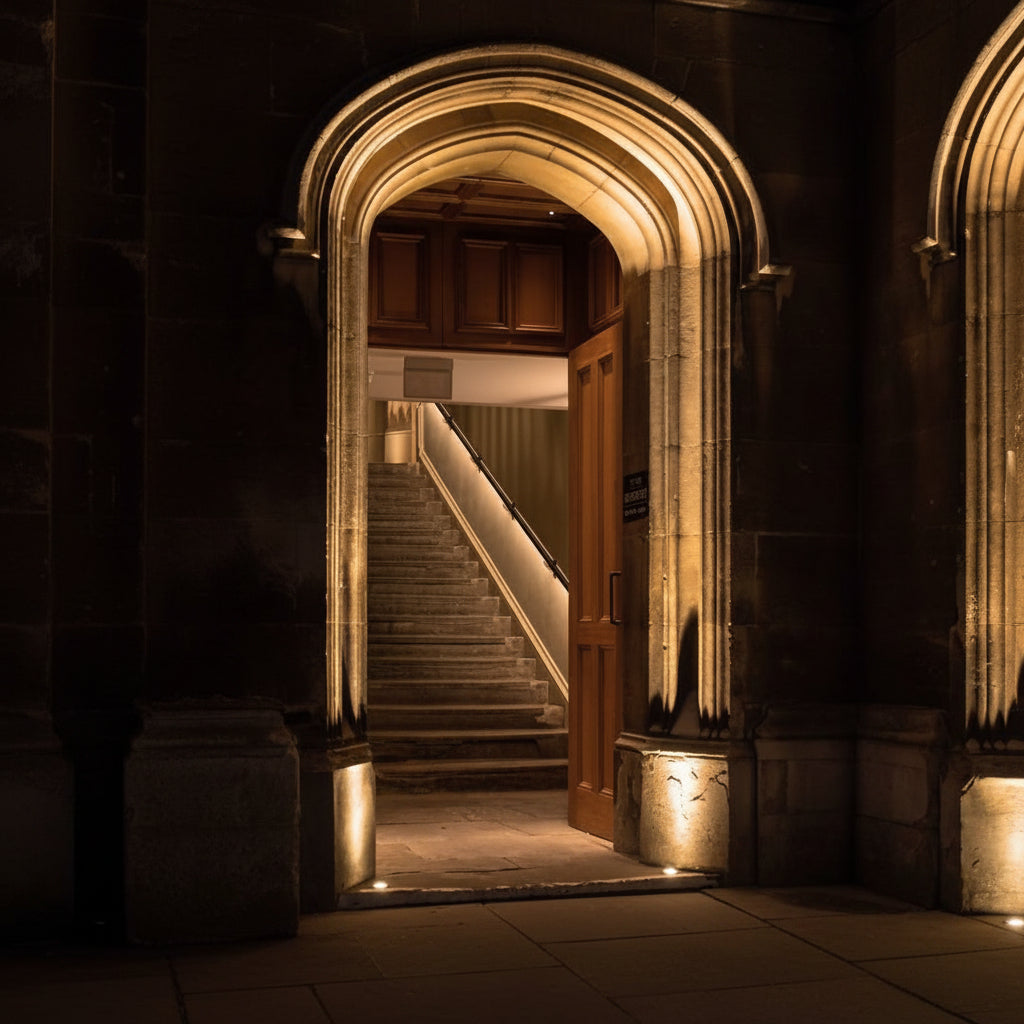

Application: Landscape Lighting, Pathway Illumination, Small Trees, Architectural Facades, and Outdoor Accent Lighting
Design Style: Compact Precision In-Ground Lighting Solution

Note: Designed for professional landscape and architectural lighting applications, featuring a USA CREE LED, 10° ultra-narrow beam, honeycomb anti-glare technology, IP67 protection, and premium corrosion-resistant construction.
