CONCRETE MOTION SENSOR

Product Feature:

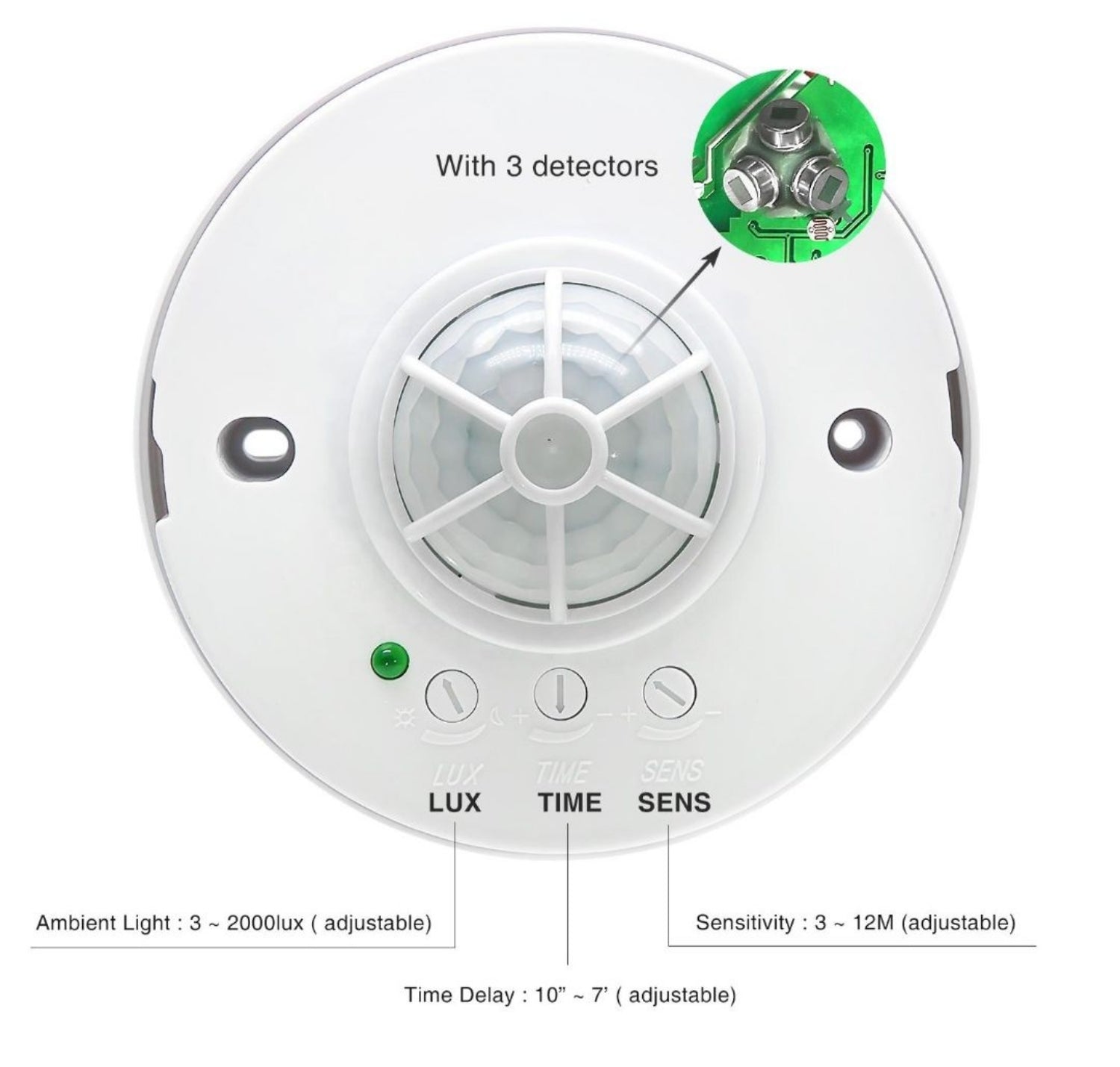

• SUPER CEILING SENSOR: 3 detectors with triple cover on top of each other to capture small movements, High sensitivity.
• LIGHT SENSOR: 3LUX ~ 2000LUX adjustable, this motion sensor switch can work both during the day and at night.
• WIDE DETECTION RANGE: 3-12 m adjustable, can be adjusted accordingly. Low sensitivity with 3m detection distance; High sensitivity with 6 or 12 m, the ceiling mount occupancy sensor adapts to a large room.
• TIME DELAY: 10 sec-7min adjustable, the delay time is continuously added, when the occupancy sensor receives the second induction signals after the first induction, it will recalculate the time at the base of the first delay time.

Specifications:

Power Sourcing: 110V/AC-240V/AC
Detection Range: 360
Power Frequency: 50Hz/60Hz
Working Temperature: -20~+40
Ambient Light: 3-2000LUX (Adjustable)
Time-Delay: min:10sec±3sec max:7min±2min
Installing Height: 2.2m~4m
Load current: 5A
Detection Motion Speed: 0.6~1.5m/s
Detection Distance: 3-12m
Power Consumption: 0.45W (work); 0.1W (static)
