CEILING SPEAKER

Features

• Built-in 100v/70v transformer
• Superior sound quality speaker for music & speech
• In-ceiling type loudspeaker
• 5 ” +1.5 ” coaxial plastic speaker unit
• Power taps 1.25 W , 2.5W, 5W & 10 W @100V
• Metal grille & ABS baffle
• Flush mount easy & secure installation

Specification

• Cutout Size: 180mm
• Dimensions: 215 x 75 mm
• Weight: 0.8Kg
• Mounting: Flush-mount dog ears
• Power Taps @100V: 1.25W, 2.5W, 5W, 10W
• Power Taps @70V: 0.65W, 1.25W, 2.5W, 5W
• SPL(1W/1M): 89dB

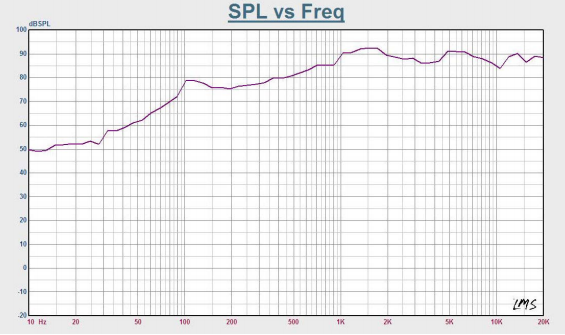

• Frequency Response: (-10dB)    80-20KHz
• Finish    Baffle: ABS
• White Grille: Steel, White
• Speaker Driver: 5
