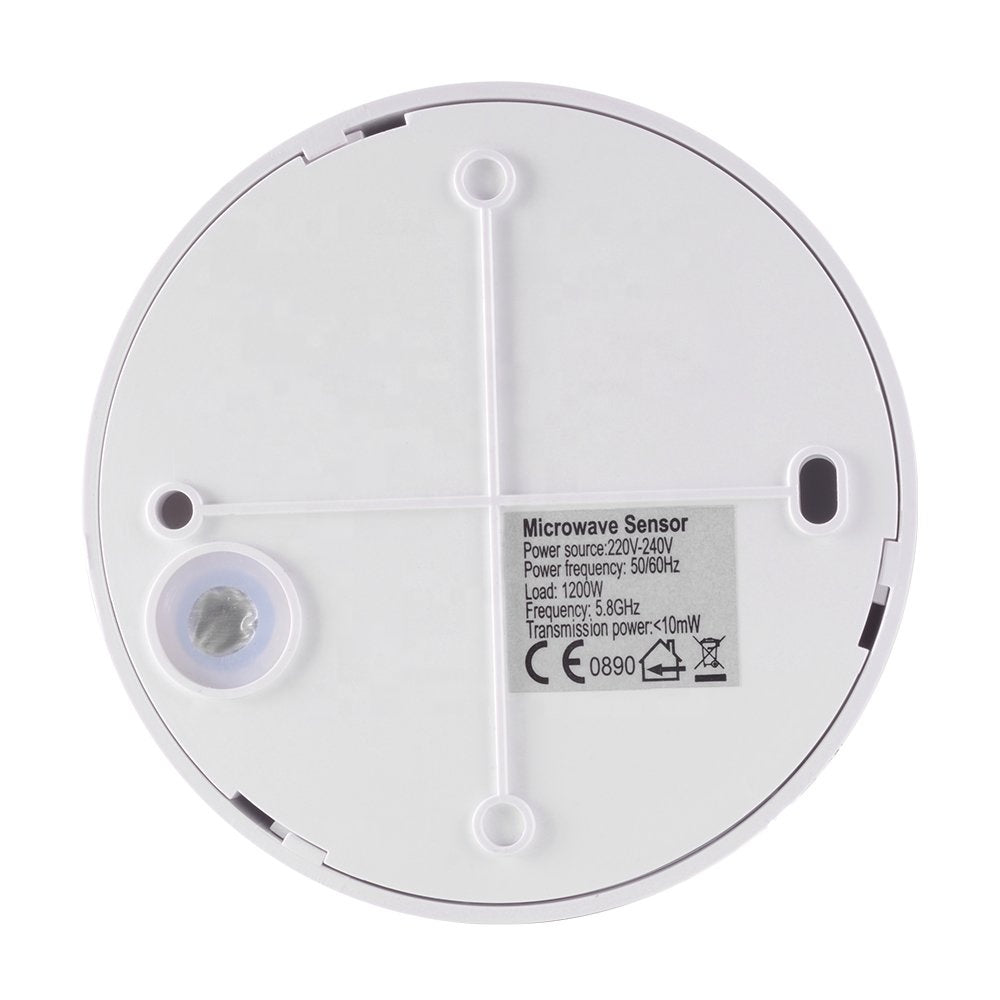

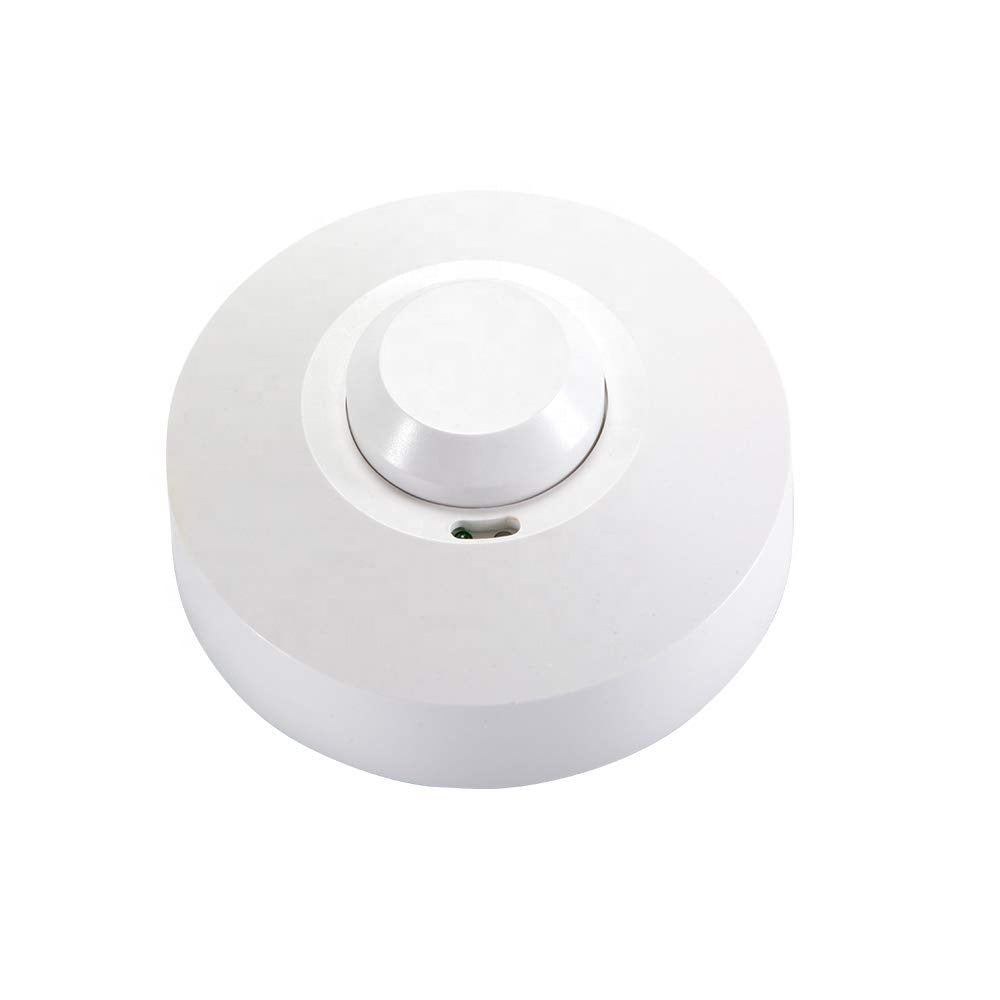

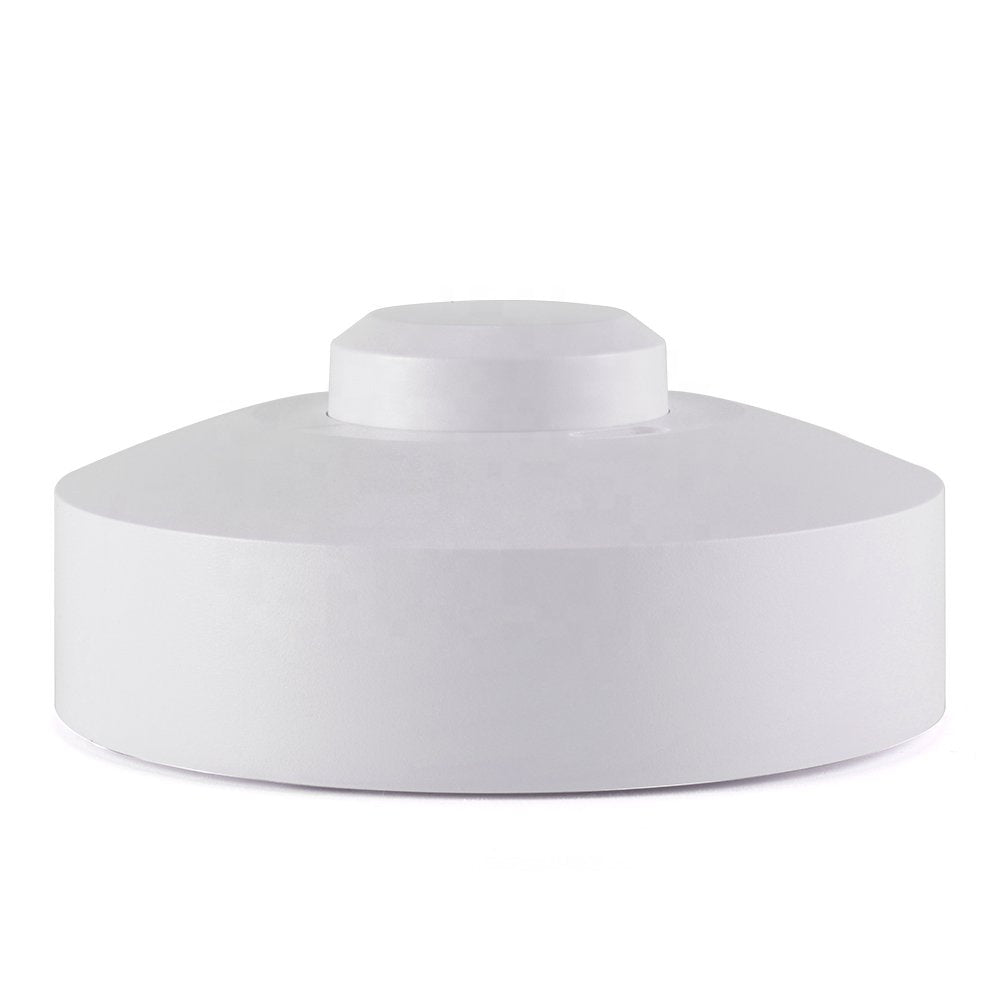

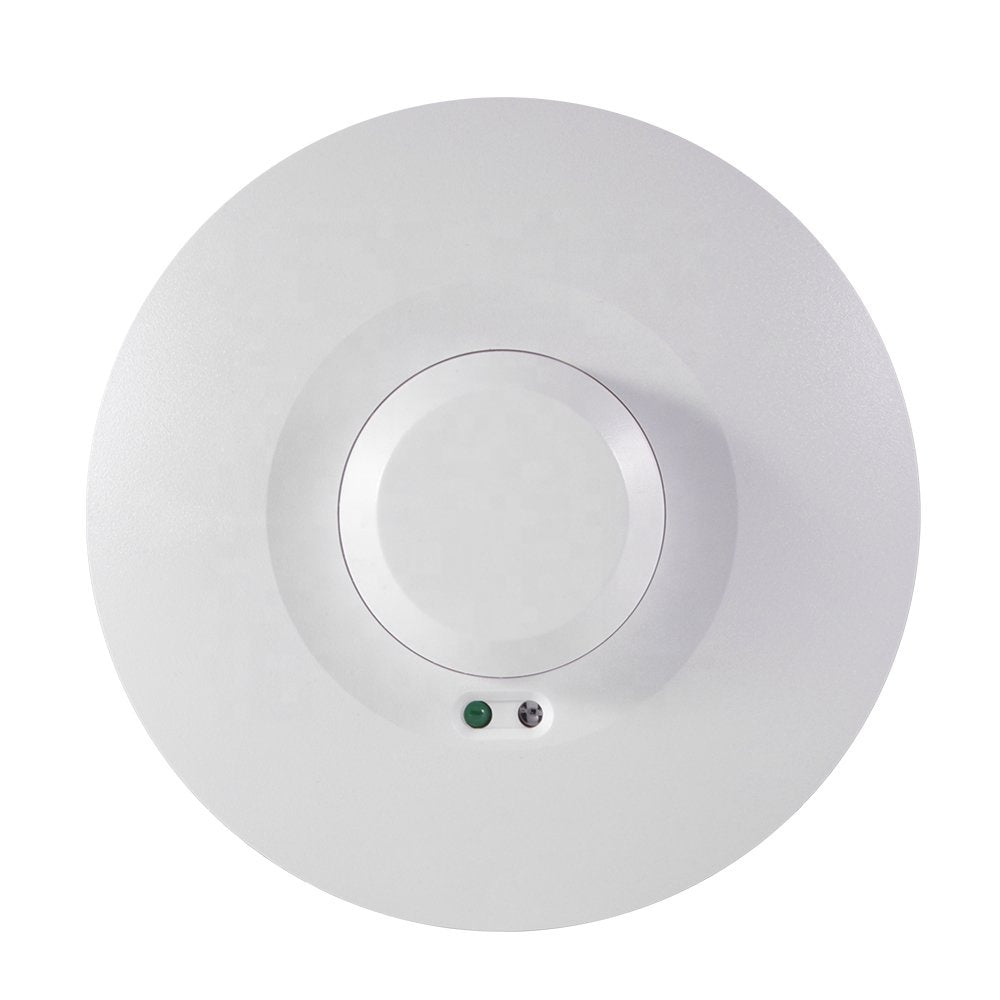

CEILING MOUNTED - MICROWAVE MOTION SENSOR

Features:

Low power consumption- power-saving. Detect distance, ambient light and time-delay are adjustable. Microwave Radar Sensor, 3 wide angle detection and further detection distance.

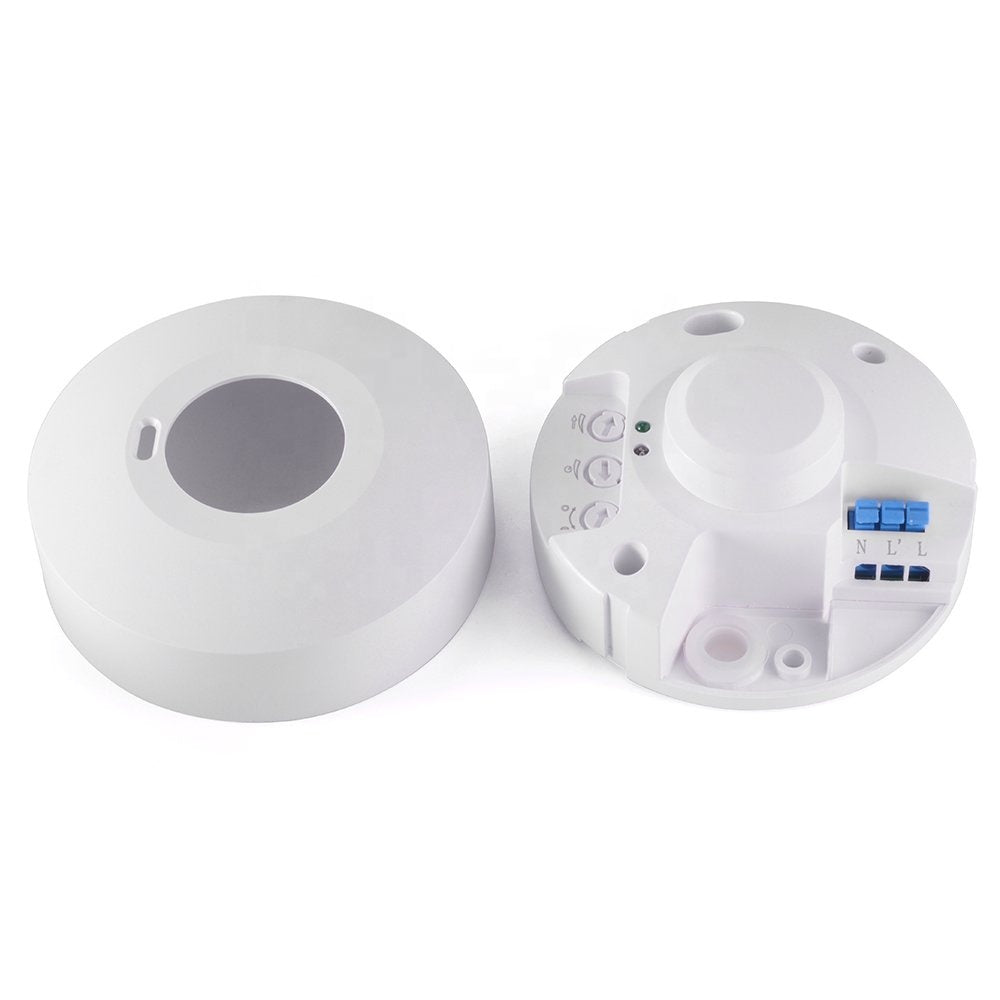

Pluggable type of the terminals which make easier and much   more convenient to install.

Applicable to monitoring equipment, warning facility, LED lamp, fluorescent lamp, incandescent lamp, ventilator and magnetic valve and many others.
Well suited to circulation areas, integral garages, store rooms, toilets, kitchens, common stairs wells or corridors where there are frequently people passing in an out of an area and the lighting often gets left on accidentally.
Can be installed on wall, ceiling and anywhere in your house.

Specifications:

• Power Source: 220-240V AC; 100-130V AC
• Power Frequency: 50Hz/60Hz
• Installation sit: Ceiling Mount
• HF System: 5.8GHz CW radar, ISM band
• Transmission Power: <10mW
• Rate Load: 1200W (220-240V AC); 600W(100-130V AC)
• Detection Angle: 3
• Reach: 1-8m (radii) ,adjustable
• Time Setting: 8sec to 12min
• Light Control: 2~2000LUX
• Power Consumption: Approx. 0.9W
