BORDERLESS CEILING SPEAKER

The borderless ceiling speaker with built-in 70v/100v transformer.

The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

Features

• Built-in 100v/70v transformer
• Superior sound quality speaker for music & speech
• In-ceiling borderless type loudspeaker
• 6 ” +1.5 ”  speaker unit
• Power output 2.5W, 5W, 10W & 20 W @100V
• Metal grille,  ABS baffle

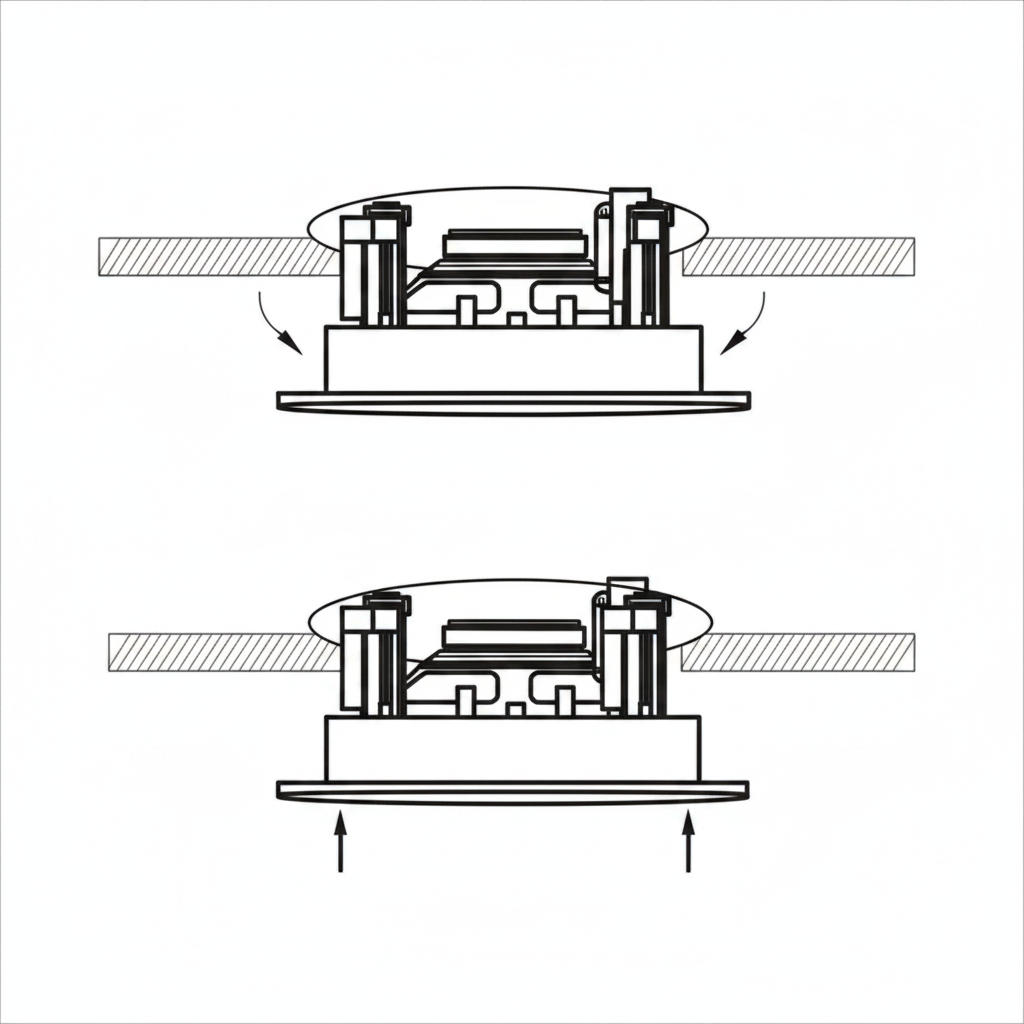

• Flush mount easy and secure installation

Specification

• Finish    Baffle: ABS
• White Grille: Steel, White
• Weight: 1.3Kg

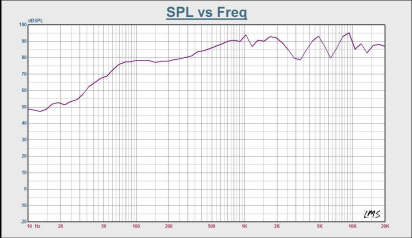

• Frequency Response: (-10dB)    70-20KHz
• Sensitivity(1W/1M): 92dB
• Impedance    Black: Com/500Ω/1KΩ/2KΩ/4KΩ
• Rated Power(70V): 1.25W, 2.5W, 5W, 10W
• Rated Power (100V): 2.5W, 5W, 10W, 20W

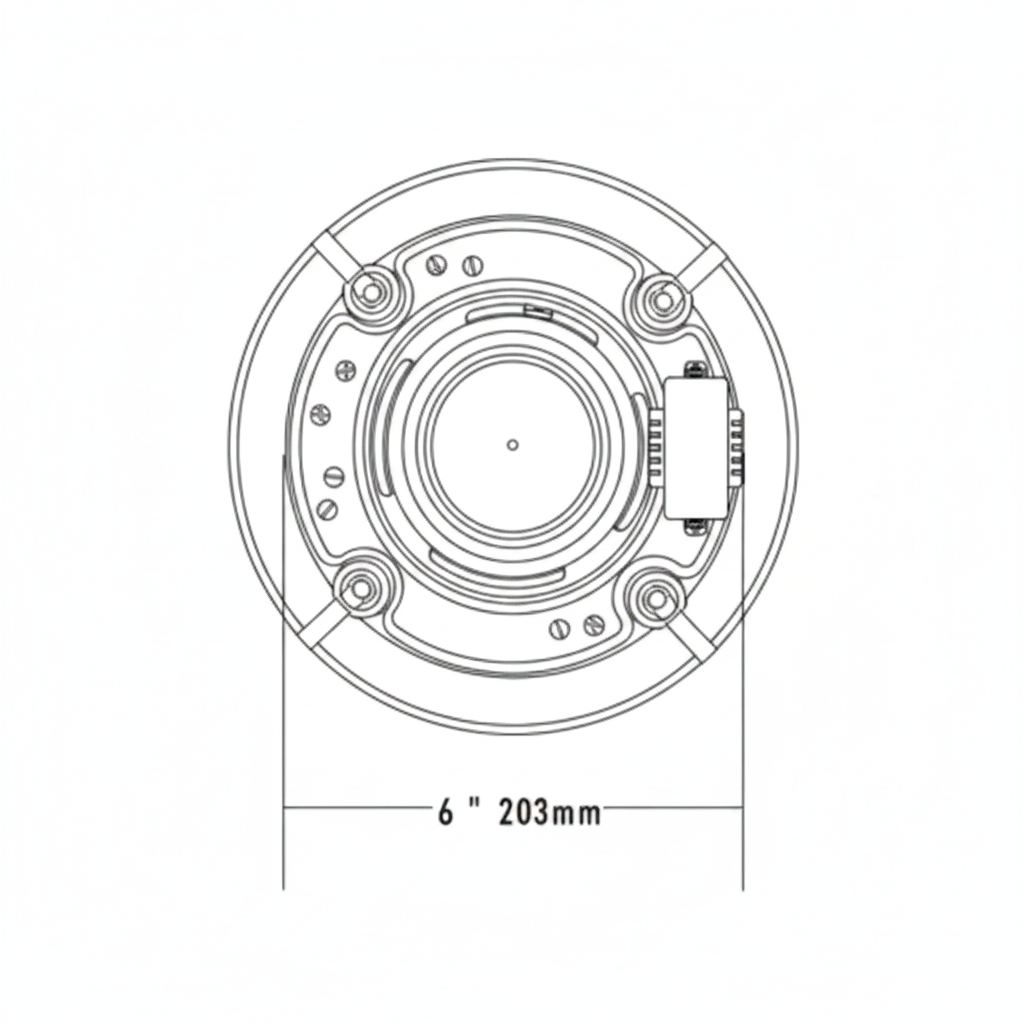

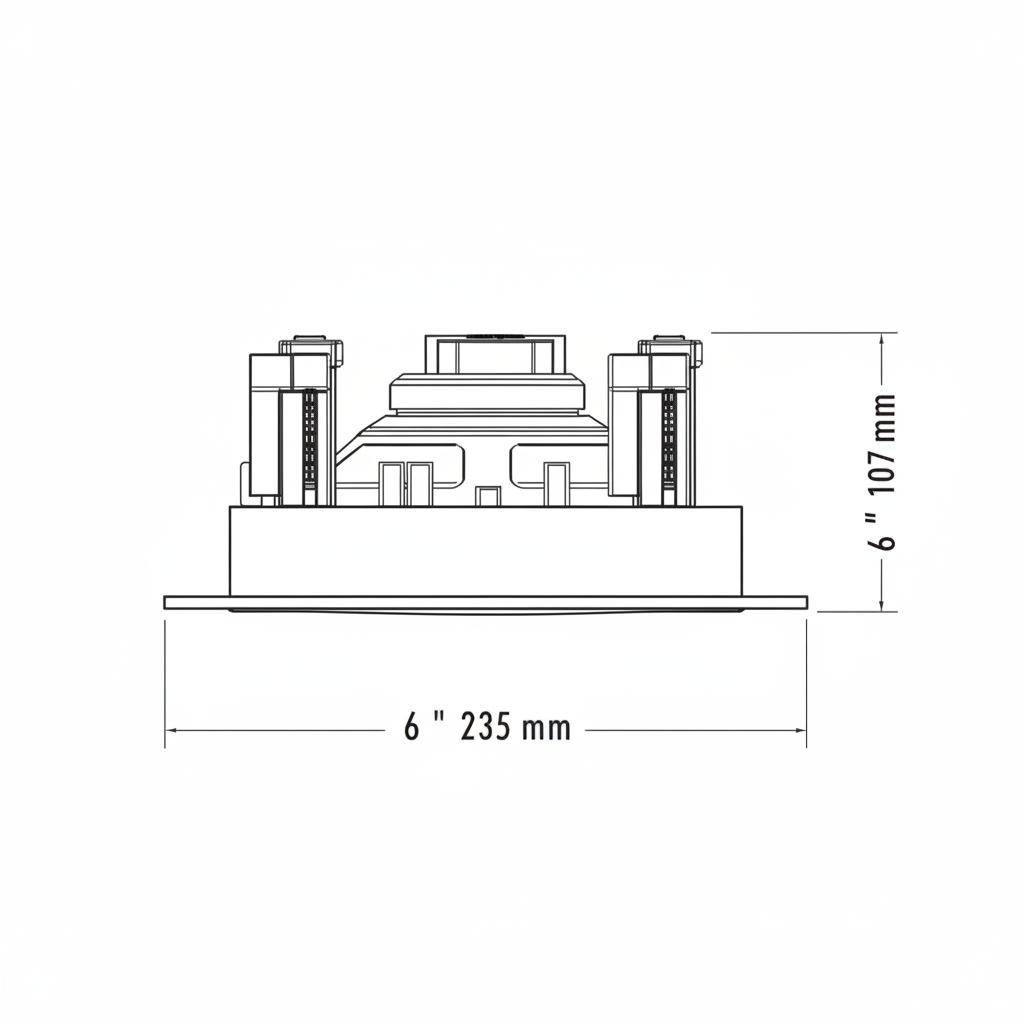

• Dimension: 235 x 107mm
• Installing hole size: 208mm
