Specification:

At a Glance
Vandal resistant body, with a flush button;
Wide-angle camera: 120° (H), 64° (V);
PoE (IEEE802.3af, Power-over-Ethernet);
Two-way audio communication over IP networks with Echo Cancel feature;
Complies with SIP standard for easy integration in every SIP capable PBXes;
Complies with ONVIF standard for easy integration with any network surveillance system;

Physical & Power
Front panel: Aluminum alloy
Camera: 3M pixels, automatic lighting
Button: 1 call button
Light sensor: Support
Infrared sensor: Support
Wiegand port: Support
RF card reader: 13.56MHz & 125kHz
Relays out: 2
Inputs: 2
Microphone: -40dB
Speaker: 4Ω / 3W
Ethernet port: RJ45, 10/100Mbps adaptive
802.3af Power-over-Ethernet
12V DC connector (if not using PoE)
Water-proof & Dust-proof: IP65

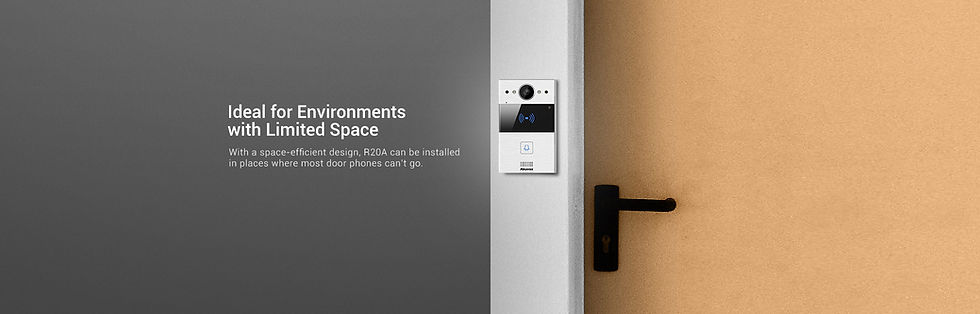

Installation: Flush-mounted or Wall-mounted
Flush-mounted DIM: 189x120x56.5mm
Wall-mounted DIM: 145x85x27.5mm
Working Humidity: 10~90%
Working Temperature: -20°C ~ +65°C
Storage Temperature: -40°C ~ +70°C

Audio
SIP v1 (RFC2543), SIP v2 (RFC3261)
Narrowband audio codec: G.711a, G.711μ, G.729
Broadband audio codec: G.722
DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
Echo Cancellation
Voice Activation Detection
Comfort Noise Generator

Video
Sensor: 1/3”, CMOS
Pixels: CIF, QCIF, VGA, 4CIF, 720p
Video codec: H.264
Video resolution: up to 1280x720p
Max. image transfer rate: 720p – 30fps
Viewing angle: 120°(H) / 64°(V)
High intensity IR LEDs for picture lighting during dark hours with internal light sensor
Compatible to 3rd-Party-Video components, e.g. NVRs

Door Entry Feature
Relays controlled individually by DTMF tones
Camera permanently operational
Auto-night mode with LED illumination
White balance: auto
Minimum illumination: 0.1LUX

Networking & Protocol
Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Deployment & Maintenance
Auto-Provisioning
Web management portal
Web-based packet dump
Configuration backup / restore
Entry log export
Access table export / import
Firmware upgrade
System logs (include door access logs)

Application Scenario
Office door phone with on-site or hosted IP-PBX
Remote site entry over Internet
Apartment/flat intercom with door access control
